One of The Best Grinding Ball Mill Manufacturer in Ahmedabad, Gujarat
Ball mills are still one of the most technologically applicable and common grinding machines used in the cement industry, the mining industry, mineral processing industry, the chemicals industry, and the metallurgy industry. In all the markets where fine grinding, stability in the process and versatility of materials are needed, the ball mill machine still prevails over newer grinding technologies that have just come into the market.
Greenfield Tech Projects being one of the top Ball Mill Manufacturers in India develops and manufactures batch type ball mills, continuous ball mills and industrial grinding ball mills that are optimized to achieve high efficiency, stable output, reduced power usage and increased service life.
The Science Behind Ball Mills — Why Speed and Design Matter
A ball mill is simply a rotating cylindrical grinding system, which utilizes controlled impact and attrition, to decrease material size. It is not only the simplicity of modern ball mills that is important today, but the fact that engineering factors such as the speed of mill, the shell diameter, the shape of liners, the type of grinding media, and the material loading of the mill directly relate to energy efficiency and ultimately the quality of the final product.
With the industrial processes shifting to automation, energy savings, and reliability of mass production of products with a few micrometers precision, ball mills have become extremely engineered devices to operate continuously in harsh environments.
What is a Ball Mill?
A Ball Mill is a cylindrical device that is used in reduction and material grinding. It spins on its horizontal axis, with part of it being full of steel or ceramic balls that pound and grind the material inside. The ball mills are common in industries to attain fine and uniform particle sizes, which will maximize the quality of materials that will be used in the process.
Components of a Ball Mill
- Drum/Cylinder: It is the rotating vessel that contains materials, in which they are ground.
- Grinding Media: Balls, crushing materials, made of steel, ceramic or other material.
- Motor and Gear System: Feeds the movement of the drum.
- Feeding & Discharge System: Ensures the easy inflow of raw materials and outflow of powdered food.

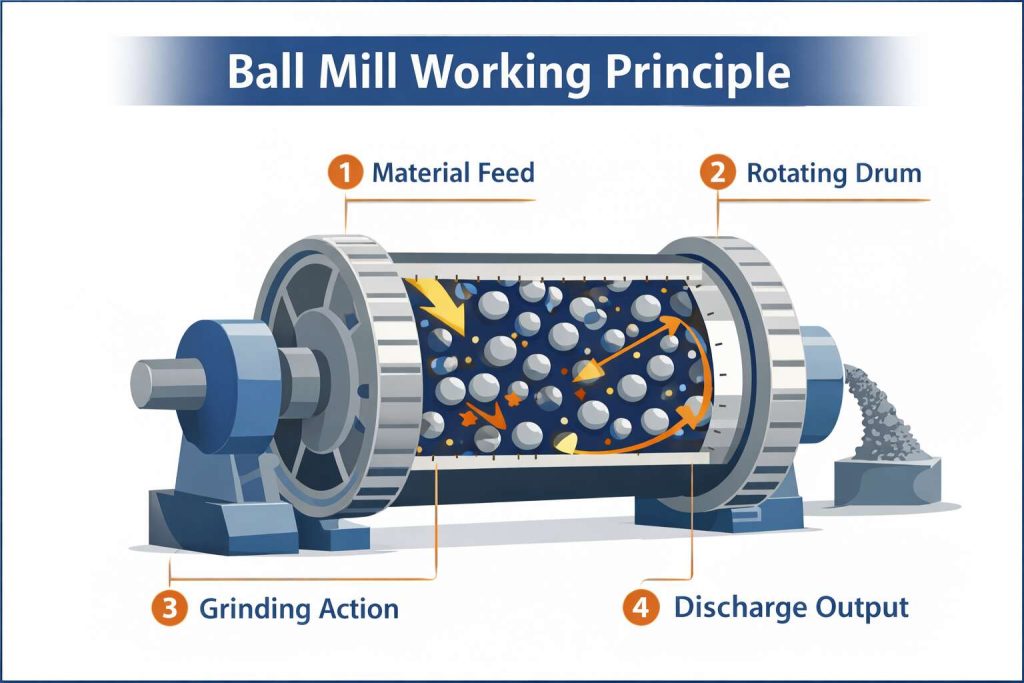

What Exactly Does a Ball Mill Do?
A ball mill machine is a machine that grinds solid materials to fine powder by rotating a cylindrical shell whose part is filled with grinding balls. The mill rotates and the balls jump up and down creating impact force and shearing force which breaks coarse particles and refines the ones even more.
Compared to crushers, which prioritize the size reduction process, grinding ball mills are used to be able to control particle size distribution and are required by the downstream processes of blending, chemical reactions, sintering, or pelletizing.
Ball mills are used in industries when:
- Evenness of the fineness is essential.
- Materials vary in hardness
- Constant, steady grinding is needed.
- At scale, fine output (10300 microns) is required.
Ball Mill Speed – Your Grinding Superpower
Rotational speed is one of the most misconceived factors of ball mill operation.
- When a ball mill is rotated at a slow speed, there is not enough impact of the grinding media, hence the poor grinding.
- If it spins too quickly, the centrifugal force attaches the balls to the shell wall, and there is no grinding whatsoever.
- This is the reason why industrial ball mills can run at 65% -75% of critical speed, which is calculated as:
Critical Speed (RPM) = 42.3 / √D
(D being the internal diameter of the mill in meters)
This speed range is maintained to assure:
- Maximum impact energy
- Reduced power wastage
- Regular reduction of particle size.
- Longer liner and media life
It is this balance between high-efficiency ball mills and energy-draining systems.
Type of Batch vs Continuous Ball Mills Machine
Batch Type Ball Mill Manufacturer
A batch type ball mill is used to process material in fixed amounts and is used in processes where precision and flexibility are more important than volume.
It is commonly used in:
- Chemical processing
- Pharmaceuticals
- Pigments and dyes
- Ceramics and specialty minerals.
The operators of batch mills can regulate the time spent grinding and thus these mills are applicable in numerous formulations and less production run.
Continuous Ball Mill Supplier
A continuous ball mill is made in such a way that it is operated continuously and that the feed material is added at one end automatically and the discharge of the mill is at the other end.
This setup is critical to:
- Cement plants
- Mining and ore beneficiation.
- Power plants
- Mass mineral processing.
Continuous ball mills are designed to be high-throughput, automated, and process stable, which is why they are the mainstay of large industrial grinding circuits.
The types, size, and distribution of grinding media are important to the production of any grinding ball mill.
Popular grinding media are:
- Cut steel balls (high-impact applications)
- Wear-resistant ball (high chrome)
- Ceramic and alumina balls (contamination-sensitive processes)
Optimized choice of media enhances:
- Grinding efficiency
- Energy utilization
- Wear resistance
- Product purity
In the current arrangements, the media grading and loading ratio are determined according to material hardness, feed size, and desired fineness, a form of calculation that is becoming even more popular in energy-conscious industries.

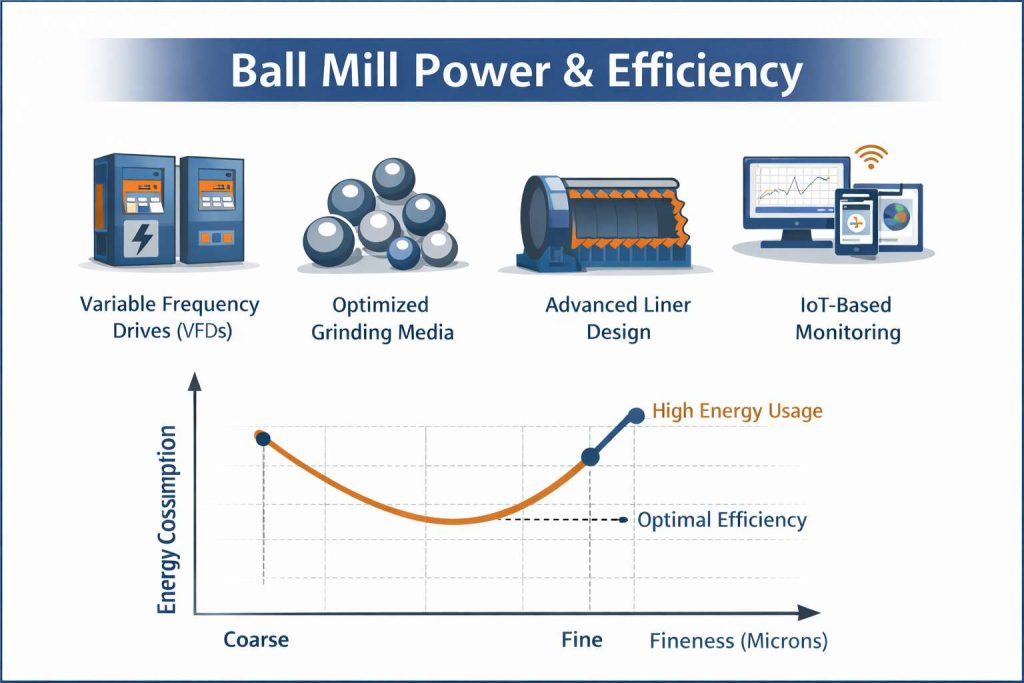

How Ball Mill Design Effect Grinding Efficiency and Output
The modern design of a ball mill consists of a trade-off between mechanical strength and process efficiency.
The key parameters are:
- mill diameter and length (capacity and fineness control)
- Type of liner and profile (wear life and impact angle)
- Selection of drive system (energy efficiency)
- Size of feed and material moisture.
- Ball-to-material ratio
A simple design transformation, like optimization of linear profiles, can result in even tens of percent efficiency improvements in power consumption, combined with better throughput.
Ball Mills Shape Industrial Production
Ball mills are not merely rotating drums anymore, they have become designed grinding systems where speed, size, load, and media are combined to find out performance.
Ball mills are one of the most reliable grinding methods that can be used in industries that are concerned with reliability, scalability, and long-term efficiency.
Being a Ball Mill Exporter in India, Greenfield Tech Projects is able to integrate modern engineering with the known principles of grinding to provide machines that are constructed with the aim of producing performance, durability, and future operational readiness.
